GLT00980160IR1

GLT00980160IR1 is a 0.96 inch IPS type color TFT LCD display with a resolution of 80x160, 262k color depth, and full viewing angle. The driver IC is ST7735S (or compatible) with a SPI interface.

Display Specifications

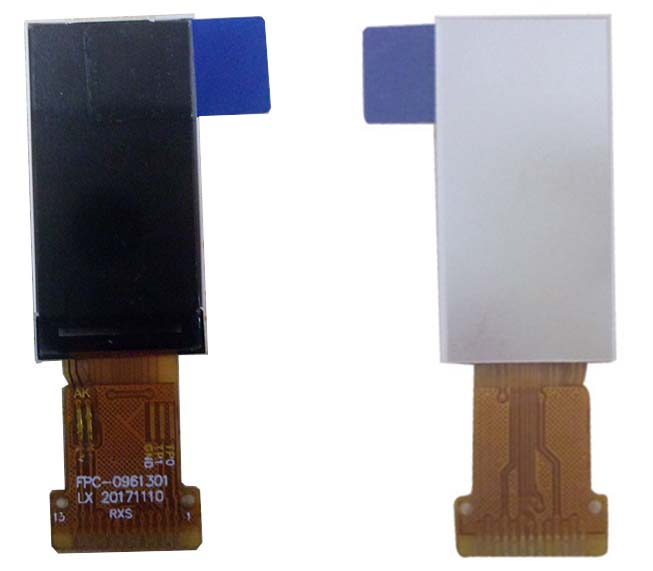

Display photo
Display Screen Size 0.96 inch
Orientation Portrait
Resolution 80 x 160
Color 262k
LCD Driver IC ST7735S
Interface Type SPI
FPC Pins 13
Module Size (W x H x T) mm 13.30 x 27.95 x 1.40
Active Area (W x H) mm 10.08 x 21.70
LCD Type IPS
Viewing Angle All
Backlight LEDs and Current 1 LED, 20mA
Brightness (cd/m2) 220
Operating Temperature -20°C ~ 70°C
Touch Panel Option w/o (RTP/CTP panel can be customized)
