GLT015240240IR1

GLT015240240IR1 is a 1.54 inch IPS type color TFT LCD display with a resolution of 240x240, 262k color depth, and full viewing angle. The driver IC is ST7789H (or compatible) with a SPI interface.

Display Specifications

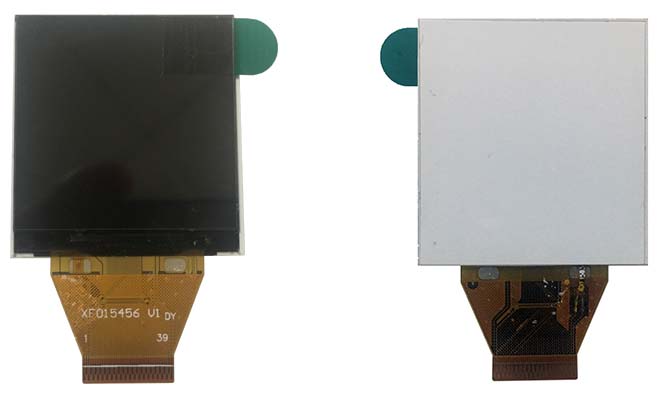

Display photo
Display Screen Size 1.54 inch
Orientation Portrait
Resolution 240 x 240
Color 262k
LCD Driver IC ST7789H
Interface Type MCU, 18bit-RGB
FPC Pins 39
Module Size (W x H x T) mm 31.52 x 33.72 x 1.80
Active Area (W x H) mm 27.72 x 27.72
LCD Type IPS
Viewing Angle All
Backlight LEDs and Current 3 LEDs, 20mA
Brightness (cd/m2) 200
Operating Temperature -20°C ~ 70°C
Touch Panel Option w/o (RTP/CTP panel can be customized)
