GLT020240320IR1

GLT020240320IR1 is a 2.0 inch IPS type color TFT LCD display with a resolution of 240x320, 262k color depth, and full viewing angle. The driver IC is ST7789V (or compatible) with a RGB interface.

Display Specifications

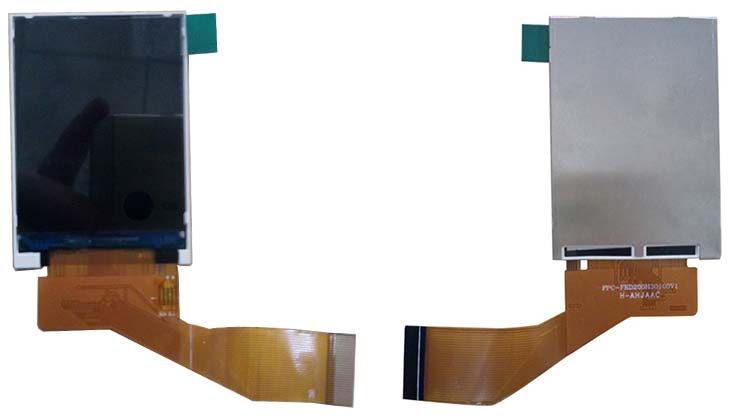

Display photo
Display Screen Size 2.0 inch
Orientation Portrait
Resolution 240 x 320
Color 262k
LCD Driver IC ST7789V
Interface Type 18bit-RGB
FPC Pins 30
Module Size (W x H x T) mm 36.02 x 51.59 x 1.70
Active Area (W x H) mm 30.60 x 40.80
LCD Type IPS
Viewing Angle All
Backlight LEDs and Current 3 LEDs, 20mA
Brightness (cd/m2) 350
Operating Temperature -20°C ~ 70°C
Touch Panel Option w/o (RTP/CTP panel can be customized)
