GLT020320240TR1

GLT020320240TR1 is a 2.0 inch TN type color TFT LCD display with a resolution of 320x240, 262k color depth, and an optimal viewing angle of 12 o'clock. The driver IC is ILI9342C (or compatible) with a RGB interface.

Display Specifications

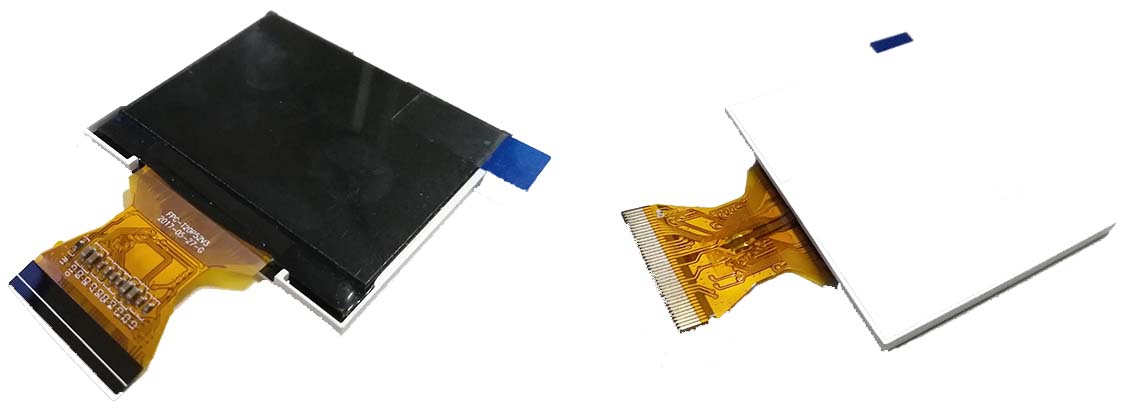

Display photo
Display Screen Size 2.0 inch
Orientation Landscape
Resolution 320 x 240
Color 262k
LCD Driver IC ILI9342C
Interface Type RGB
FPC Pins 40
Module Size (W x H x T) mm 46.1 x 40.96 x 2.53
Active Area (W x H) mm 40.80 x 30.60
LCD Type TN
Viewing Angle 12 o'clock
Backlight LEDs and Current 3 LEDs, 20mA
Brightness (cd/m2) 400
Operating Temperature -20°C ~ 70°C
Touch Panel Option w/o (RTP/CTP panel can be customized)
