GLT028240320TR1

GLT028240320TR1 is a 2.8 inch TN type color TFT LCD display with a resolution of 240x320, 262k color depth, and an optimal viewing angle of 6 o'clock. The driver IC is ILI9341 (or compatible) with a SPI/MCU/18bit-RGB interface.

Display Specifications

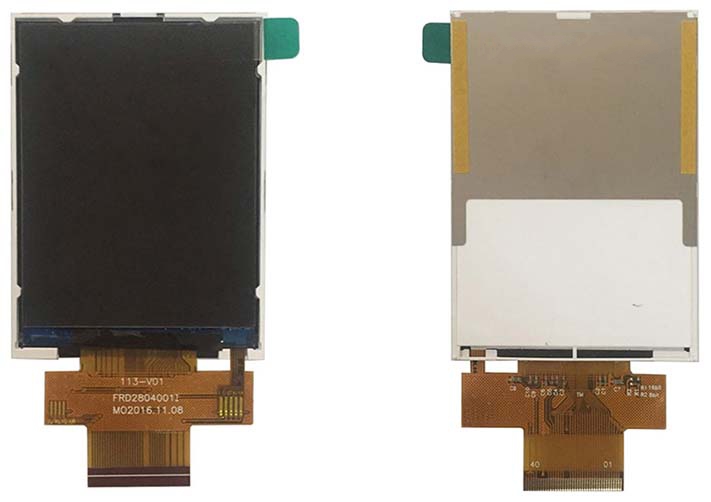

Display photo
Display Screen Size 2.8 inch
Orientation Portrait
Resolution 240 x 320
Color 262k
LCD Driver IC ILI9341
Interface Type SPI, MCU, 18bit-RGB
FPC Pins 50
Module Size (W x H x T) mm 50.20 x 69.20 x 2.75
Active Area (W x H) mm 43.20 x 57.60
LCD Type TN
Viewing Angle 6 o'clock
Backlight LEDs and Current 4 LEDs, 80mA
Brightness (cd/m2) 350
Operating Temperature -20°C ~ 70°C
Touch Panel Option RTP or CTP
