GLT035320240TR2

GLT035320240TR2 is a 3.5 inch TN type color TFT LCD display with a resolution of 320x240, 16.7M color depth, and an optimal viewing angle of 12 o'clock. The driver IC is NV3035GTC (or compatible) with a SPI/24bit-RGB interface.

Display Specifications

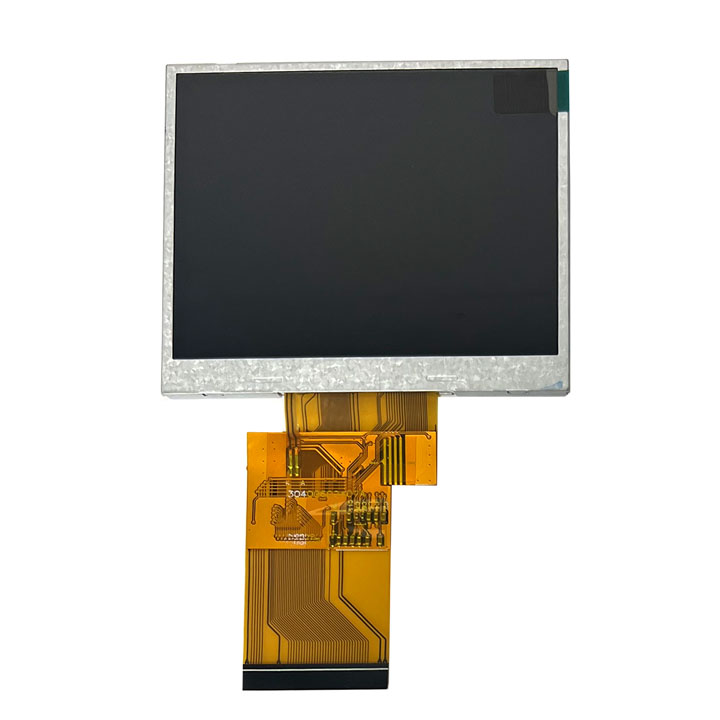

Display photo
Display Screen Size 3.5 inch
Orientation Landscape
Resolution 320 x 240
Color 16.7M
LCD Driver IC NV3035GTC
Interface Type SPI, 24bit-RGB
FPC Pins 54
Module Size (W x H x T) mm 76.90 x 64.00 x 3.15
Active Area (W x H) mm 70.08 x 52.56
LCD Type TN
Viewing Angle 12 o'clock
Backlight LEDs and Current 6 LEDs, 20mA
Brightness (cd/m2) 320
Operating Temperature -20°C ~ 70°C
Touch Panel Option RTP or CTP
