GLT043480800IR1

GLT043480800IR1 is a 4.3 inch IPS type color TFT LCD display with a resolution of 480x800, 16.7M color depth, and full viewing angle. The driver IC is NT35510 (or compatible) with a 24bit-RGB interface.

Display Specifications

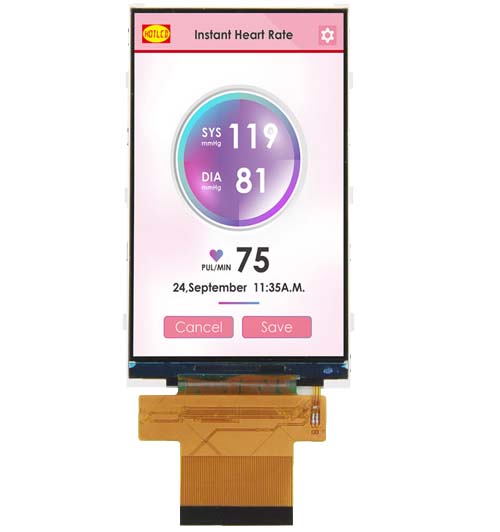

Display photo
Display Screen Size 4.3 inch
Orientation Portrait
Resolution 480 x 800
Color 16.7M
LCD Driver IC NT35510
Interface Type 24bit-RGB
FPC Pins 40
Module Size (W x H x T) mm 62.46 x 105.90 x 2.70
Active Area (W x H) mm 56.16 x 93.60
LCD Type IPS
Viewing Angle All
Backlight LEDs and Current 8 LEDs, 20mA
Brightness (cd/m2) 350
Operating Temperature -20°C ~ 70°C
Touch Panel Option RTP or CTP
