GLT0507201280IH1

GLT0507201280IH1 is a 5.0 inch IPS type color TFT LCD display with a resolution of 720x1280, 262k color depth, and full viewing angle. The driver IC is ILI9881C (or compatible) with a MIPI interface.

Display Specifications

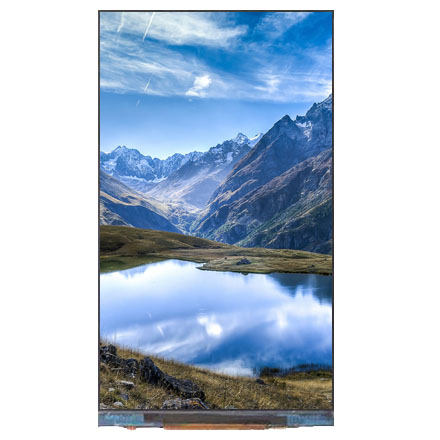

Display photo
Display Screen Size 5.0 inch
Orientation Portrait
Resolution 720 x 1280
Color 262k
LCD Driver IC ILI9881C
Interface Type MIPI
FPC Pins 39
Module Size (W x H x T) mm 64.80 x 118.63 x 2.56
Active Area (W x H) mm 62.10 x 110.40
LCD Type IPS
Viewing Angle All
Backlight LEDs and Current 12 LEDs, 40mA
Brightness (cd/m2) 500
Operating Temperature -20°C ~ 70°C
Touch Panel Option RTP or CTP
