GLT050800480IH1-CTP

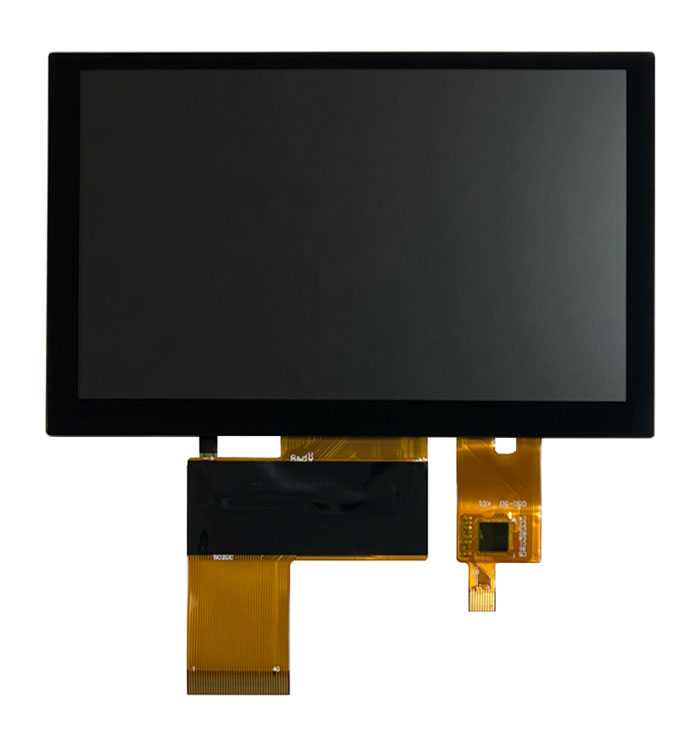

GLT050800480IH1-CTP is a 5.0 inch IPS type color TFT LCD display with a resolution of 800x480, 16.7M color depth, full viewing angle, and a CTP. The driver IC is ST7262-G4-1-H (or compatible) with a 24bit-RGB interface.

Display Specifications

Display photo is coming soon.
Display Screen Size 5.0 inch
Orientation Landscape
Resolution 800 x 480
Color 16.7M
LCD Driver IC ST7262-G4-1-H
Interface Type 24bit-RGB
FPC Pins 40
Module Size (W x H x T) mm 120.70 x 76.30 x 4.92
Active Area (W x H) mm 108.00 x 64.80
LCD Type IPS
Viewing Angle All
Backlight LEDs and Current 12 LEDs, 40mA
Brightness (cd/m2) 400
Operating Temperature -20°C ~ 70°C
Touch Panel Option CTP
