GLT050800480TR1,H1,S1

GLT050800480TR1,H1,S1 is a 5.0 inch TN type color TFT LCD display with a resolution of 800x480, 16.7M color depth, and an optimal viewing angle of 12 o'clock. The driver IC is EK73002+EK9713/HX8264+HX8664 (or compatible) with a 24bit-RGB interface.

Display Specifications

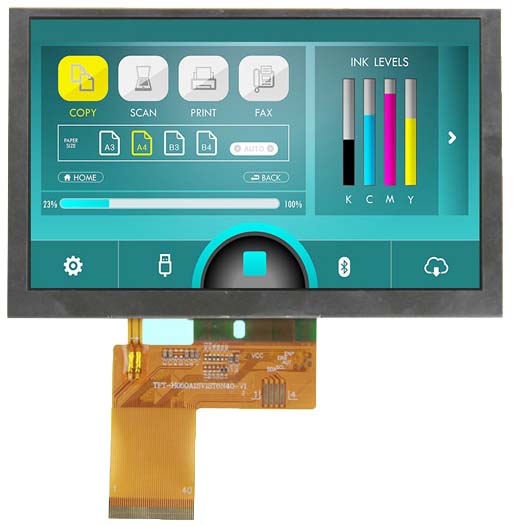

Display photo
Display Screen Size 5.0 inch
Orientation Landscape
Resolution 800 x 480
Color 16.7M
LCD Driver IC EK73002+EK9713/HX8264+HX8664
Interface Type 24bit-RGB
FPC Pins 40
Module Size (W x H x T) mm 120.70 x 75.80 x 3.00
Active Area (W x H) mm 108.00 x 64.80
LCD Type TN
Viewing Angle 12 o'clock
Backlight LEDs and Current 12/12/14 LEDs, 40/40/140mA
Brightness (cd/m2) 350, 500, 1000
Operating Temperature -20°C ~ 70°C
Touch Panel Option RTP or CTP
