GLT05510801920IS1

GLT05510801920IS1 is a 5.5 inch IPS type color TFT LCD display with a resolution of 1080*1920, 16.7M color depth, and full viewing angle. The driver IC is NT35532 (or compatible) with a 24bit-RGB interface.

Display Specifications

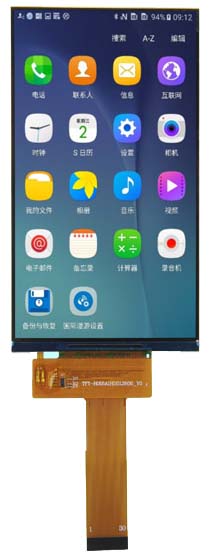

Display photo
Display Screen Size 5.5 inch
Orientation Portrait
Resolution 1080 x 1920
Color 16.7M
LCD Driver IC NT35532
Interface Type 24bit-RGB
FPC Pins 31
Module Size (W x H x T) mm 71.60 x 129.57 x 1.90
Active Area (W x H) mm 68.04 x 120.96
LCD Type IPS
Viewing Angle All
Backlight LEDs and Current 14 LEDs, 140mA
Brightness (cd/m2) 800
Operating Temperature -20°C ~ 70°C
Touch Panel Option RTP or CTP
