GLT0701024600IH1,S1

GLT0701024600IH1,S1 is a 7.0 inch IPS type color TFT LCD display with a resolution of 1024x600, 16.7M color depth, and full viewing angle. The driver IC is HX8282 +HX8696 (or compatible) with a LVDS interface.

Display Specifications

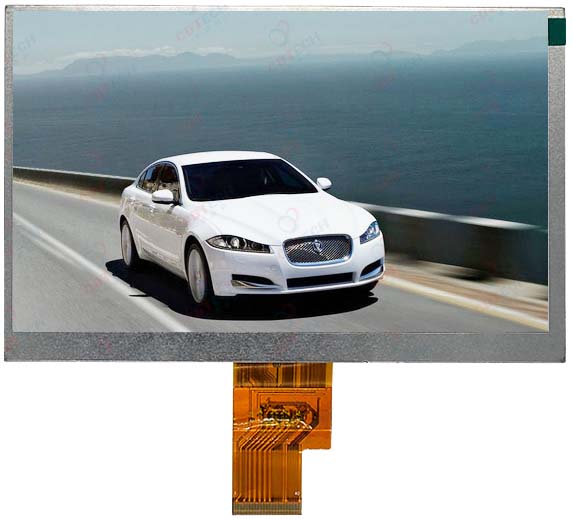

Display photo
Display Screen Size 7.0 inch
Orientation Landscape
Resolution 1024 x 600
Color 16.7M
LCD Driver IC HX8282 + HX8696
Interface Type LVDS
FPC Pins 40
Module Size (W x H x T) mm 164.90 x 100.00 x 5.70
Active Area (W x H) mm 154.21 x 85.92
LCD Type IPS
Viewing Angle All
Backlight LEDs and Current 27 LEDs, 200/300mA
Brightness (cd/m2) 500, 1000
Operating Temperature -20°C ~ 70°C
Touch Panel Option RTP or CTP
