GLT070800480TR1,H1,S1,S2

GLT070800480TR1,H1,S1,S2 is a 7.0 inch TN type color TFT LCD display with a resolution of 800x480, 16.7M color depth, and an optimal viewing angle of 12 o'clock. The driver IC is HX8664+HX8264 (or compatible) with a 24bit-RGB interface.

Display Specifications

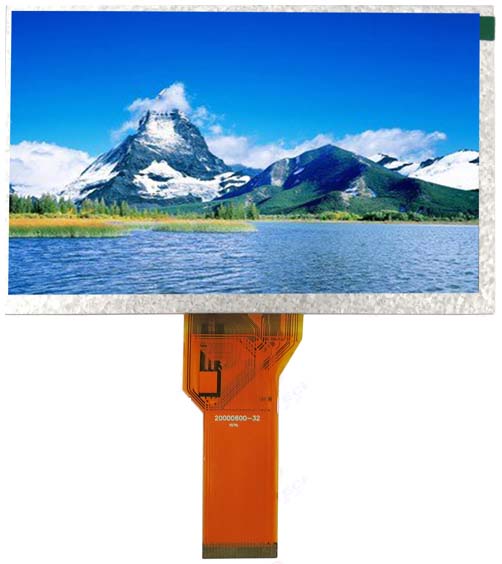

Display photo
Display Screen Size 7.0 inch
Orientation Landscape
Resolution 800 x 480
Color 16.7M
LCD Driver IC HX8664+HX8264
Interface Type 24bit-RGB
FPC Pins 40/50
Module Size (W x H x T) mm 165.00 x 100.00 x 5.70
Active Area (W x H) mm 154.08 x 85.92
LCD Type TN
Viewing Angle 12 o'clock
Backlight LEDs and Current 27 LEDs, 180/180/180/360mA
Brightness (cd/m2) 350, 550, 1000, 1200
Operating Temperature -20°C ~ 70°C/-30°C ~ 85°C
Touch Panel Option RTP or CTP
