GLT0801024768IH1

GLT0801024768IH1 is a 8.0 inch IPS type color TFT LCD display with a resolution of 1024x768, 16.7M color depth, and full viewing angle. The driver IC is EK79001+EK73215 (or compatible) with a LVDS interface.

Display Specifications

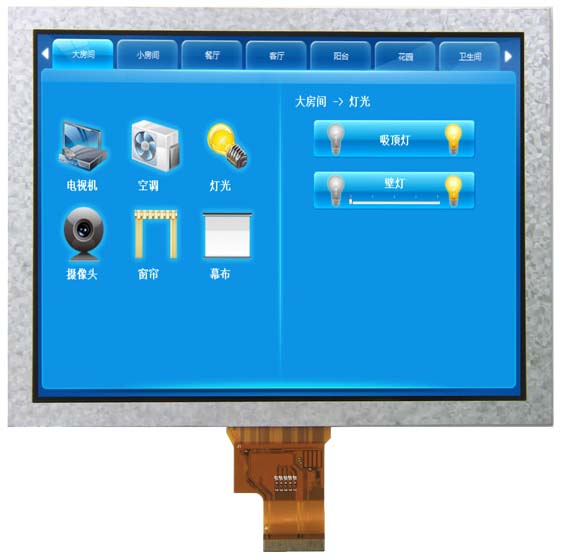

Display photo
Display Screen Size 8.0 inch
Orientation Landscape
Resolution 1024 x 768
Color 16.7M
LCD Driver IC EK79001+EK73215
Interface Type LVDS
FPC Pins 40
Module Size (W x H x T) mm 183.00 x 141.00 x 6.15
Active Area (W x H) mm 162.05 x 121.54
LCD Type IPS
Viewing Angle All
Backlight LEDs and Current 27 LEDs, 540mA
Brightness (cd/m2) 1000
Operating Temperature -10°C ~ 50°C
Touch Panel Option RTP or CTP
