GLT1011024600IH1,S1

GLT1011024600IH1,S1 is a 10.1 inch IPS type color TFT LCD display with a resolution of 1024x600, 16.7M color depth, and full viewing angle. The driver IC is EK79001 +EK73215 (or compatible) with a 24-bit RGB interface.

Display Specifications

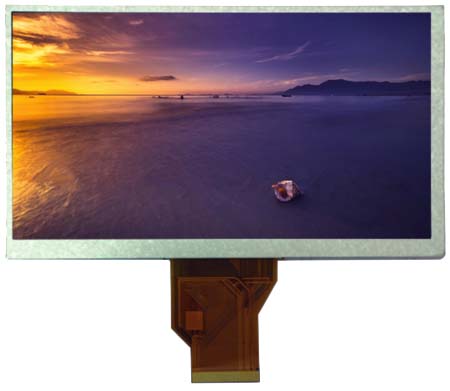

Display photo
Display Screen Size 10.1 inch
Orientation Landscape
Resolution 1024 x 600
Color 16.7M
LCD Driver IC EK79001+EK73215
Interface Type 24-bit RGB
FPC Pins 40/50
Module Size (W x H x T) mm 235.00 x 143.00 x 5.10
Active Area (W x H) mm 222.72 x 125.28
LCD Type IPS
Viewing Angle All
Backlight LEDs and Current 21 LEDs, 360mA
Brightness (cd/m2) 700, 1000
Operating Temperature -20°C ~ 70°C
Touch Panel Option RTP or CTP
