GLT11619201080IR1

GLT11619201080IR1 is a 11.6 inch IPS type color TFT LCD display with a resolution of 1920x1080, 16.7M color depth, and full viewing angle. The driver IC is EK79001 +EK73215 (or compatible) with a LVDS interface.

Display Specifications

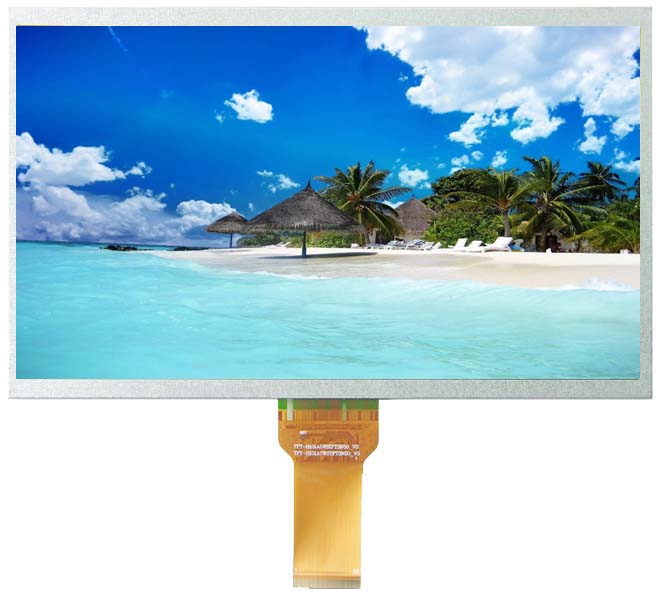

Display photo
Display Screen Size 11.6 inch
Orientation Landscape
Resolution 1920 x 1080
Color 16.7M
LCD Driver IC EK79001+EK73215
Interface Type LVDS
FPC Pins 30
Module Size (W x H x T) mm 263.40 x 157.22 x 2.55
Active Area (W x H) mm 256.32 x 144.18
LCD Type IPS
Viewing Angle All
Backlight LEDs and Current 40 LEDs, 100mA
Brightness (cd/m2) 220
Operating Temperature 0°C ~ 50°C
Touch Panel Option RTP or CTP
