GLT029320120IR1

GLT029320120IR1 is a 2.9 inch IPS type color ultra-wide TFT LCD display with a resolution of 320x120, 262k color depth, and full viewing angle. The driver IC is ST7272A (or compatible) with a 18bit-RGB interface.

Display Specifications

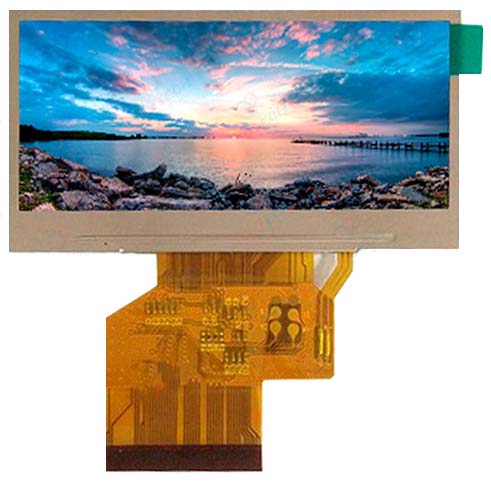

Display photo
Display Screen Size 2.9 inch
Orientation Landscape
Resolution 320 x 120
Color 262k
LCD Driver IC ST7272A
Interface Type 18bit-RGB
FPC Pins 54
Module Size (W x H x T) mm 76.90 x 38.22 x 3.26
Active Area (W x H) mm 70.08 x 26.28
LCD Type IPS
Viewing Angle All
Backlight LEDs and Current 6 LEDs, 20mA
Brightness (cd/m2) 300
Operating Temperature -20°C ~ 70°C
Touch Panel Option RTP/CTP
