GLT024240320IR1

GLT024240320IR1 is a 2.4 inch IPS type color TFT LCD display with a resolution of 240x320, 262k color depth, and full viewing angle. The driver IC is ILI9340X (or compatible) with a RGB interface.

Display Specifications

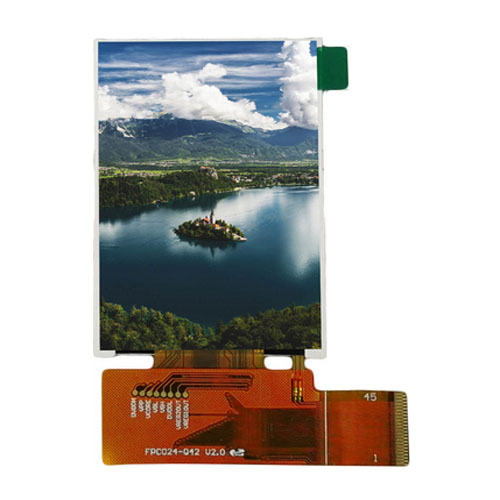

Display photo
Display Screen Size 2.4 inch
Orientation Portrait
Resolution 240 x 320
Color 262k
LCD Driver IC ILI9340X
Interface Type SPI, MCU, 18bit-RGB
FPC Pins 45
Module Size (W x H x T) mm 42.72 x 60.26 x 2.20
Active Area (W x H) mm 36.72 x 48.96
LCD Type IPS
Viewing Angle All
Backlight LEDs and Current 4 LEDs, 20mA
Brightness (cd/m2) 350
Operating Temperature -20°C ~ 70°C
Touch Panel Option RTP or CTP
